KX111-I short fiber rate rapid tester adopts high-precision digital circuit, microcomputer control, liquid crystal display, and has a database. It is easy to operate and clear at a glance. It provides one for fiber inspection system, cotton spinning mill, commodity inspection bureau, cotton purchasing system and agricultural system. A convenient, fast and accurate instrument for detecting the length of the main body, the length of quality and the rate of short fiber.

  1. Basic principles

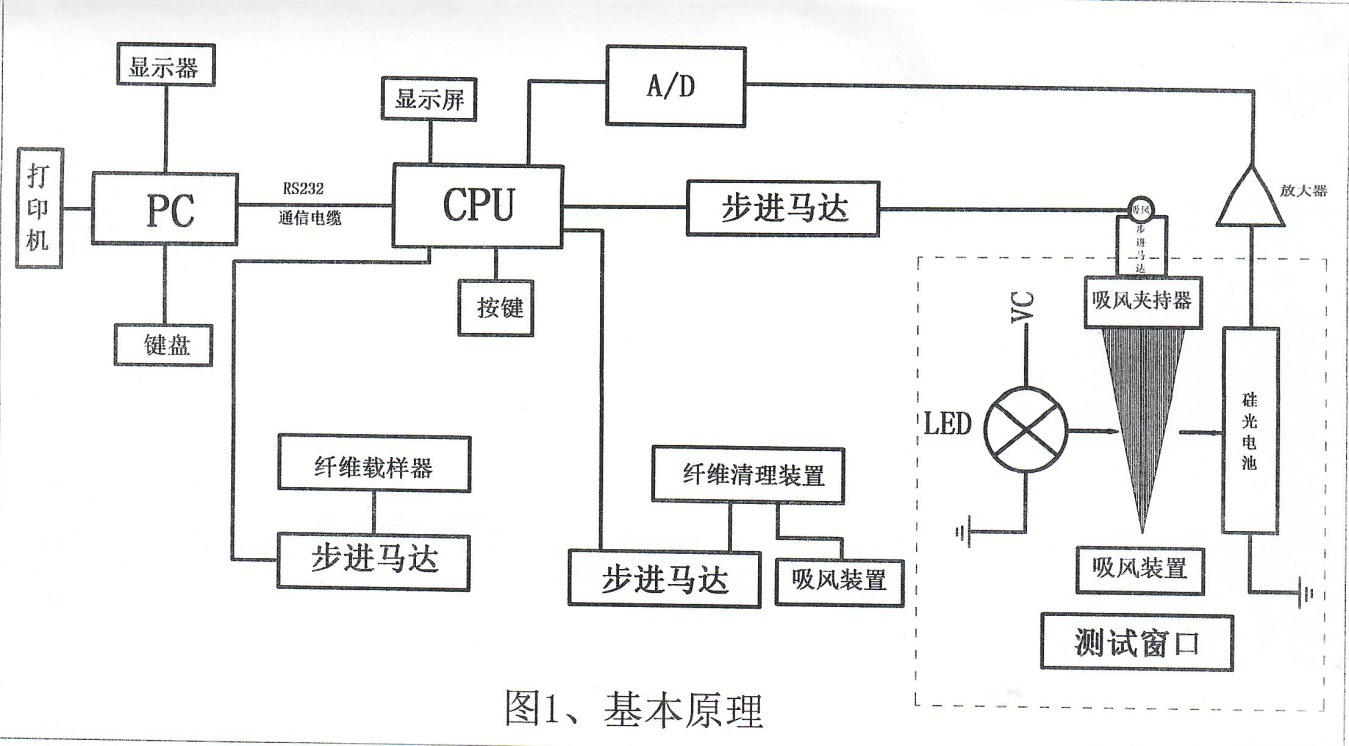

    The main principle of this instrument is to arrange fibers into fiber bundles aligned at one end. The CPU generates a trigger pulse to control the rotation of the stepping motor, and drives the suction gripper to clamp the fiber bundle aligned at one end from the sample loading device to move in a prescribed step. The free fiber is cleaned up by the fiber cleaning device. The light emitting diode (LED) sends out a light signal through the fiber bundle on the suction gripper to reach the silicon photocell, so that the fiber bundle is scanned photoelectrically from the root to the tip, which is converted into a digital signal by A/D and sent to the CPU for processing to obtain cotton The Amount value that the bundle is positively related to the fiber bundle at different distances. The Amount value and the step length are sent to the PC for further processing to obtain the length distribution curve of the fiber bundle. According to the length distribution curve, the main body length, quality length and weight percentage of short fiber ratio are obtained.

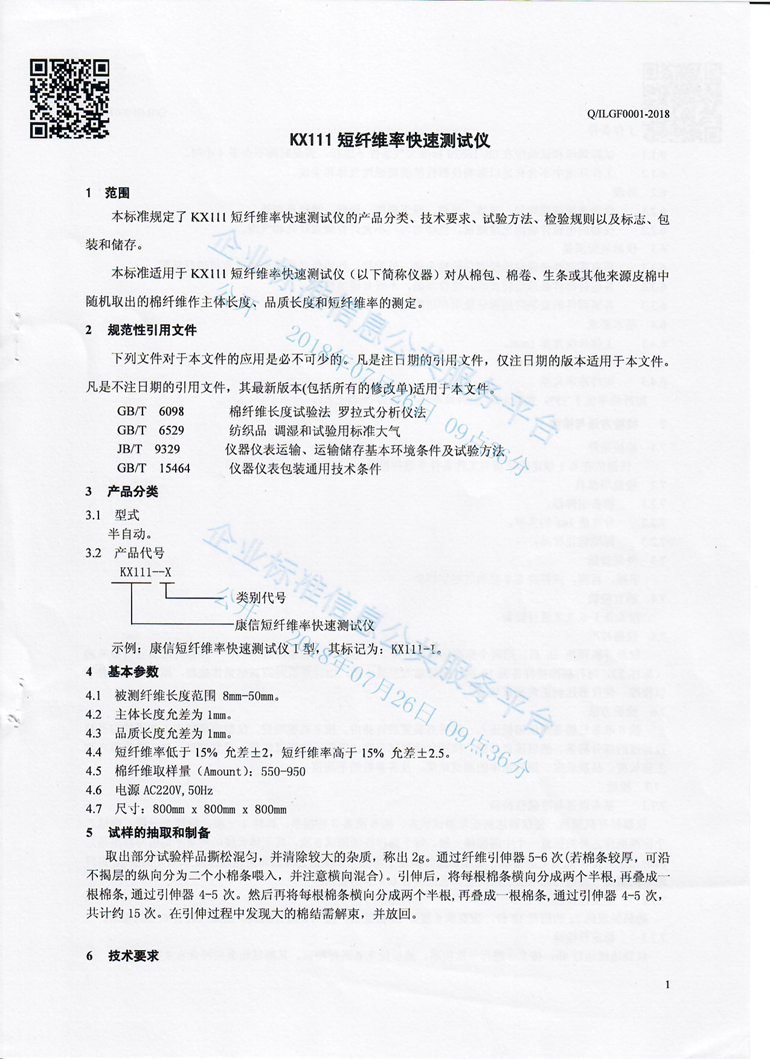

  2. Main technical indicators

    1) Cotton fiber length range: 8mm-50mm;

    2) Short fiber rate error: the short fiber rate is less than 15%, the tolerance is ±2,

  The short fiber rate is higher than 15%, and the tolerance is ±2.5;

    3) Cotton fiber sampling amount: 3.5g;

    4) Body length: reference value;

    5) Quality length: reference value;

    6) Test one data per minute;

    7) Power supply: ~220V 50Hz;

    8) Dimensions: 815mm×815mm×1010mm.

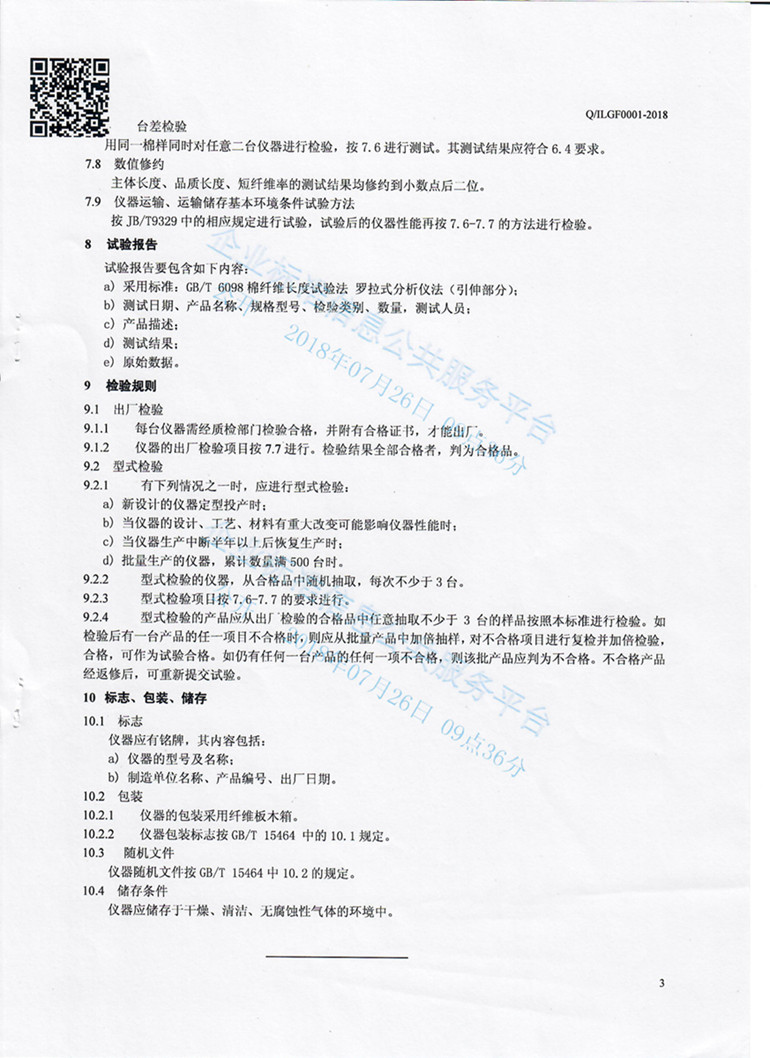

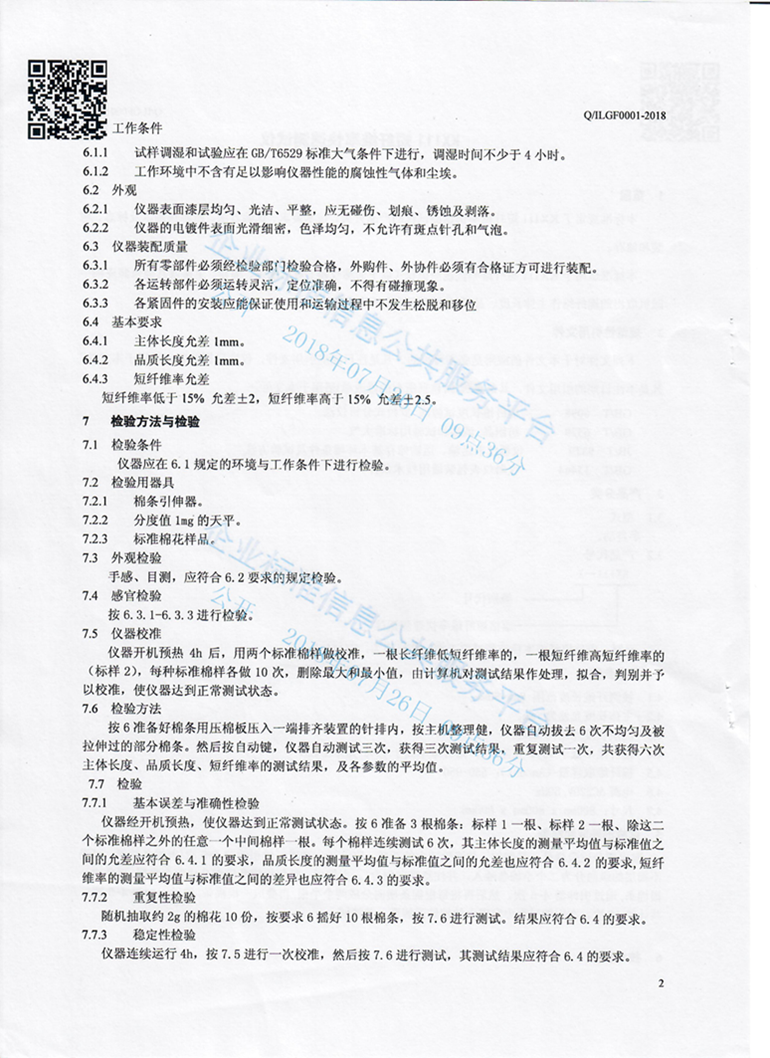

  3.Main technical indexes

    1) Cotton fiber length range: 8mm -50mm;

    2) Short fiber rate error: short fiber rate is less than 15%, tolerance ±2,

  short fiber rate is exceed than 15%, tolerance ±2.5;

    3) Cotton fiber sampling amount: 3.5g;

    4)Test one data per minute;

    4) Power supply: ∽220V,50Hz;

    5) Installation dimensions: 815mm×815mm×1010mm.
